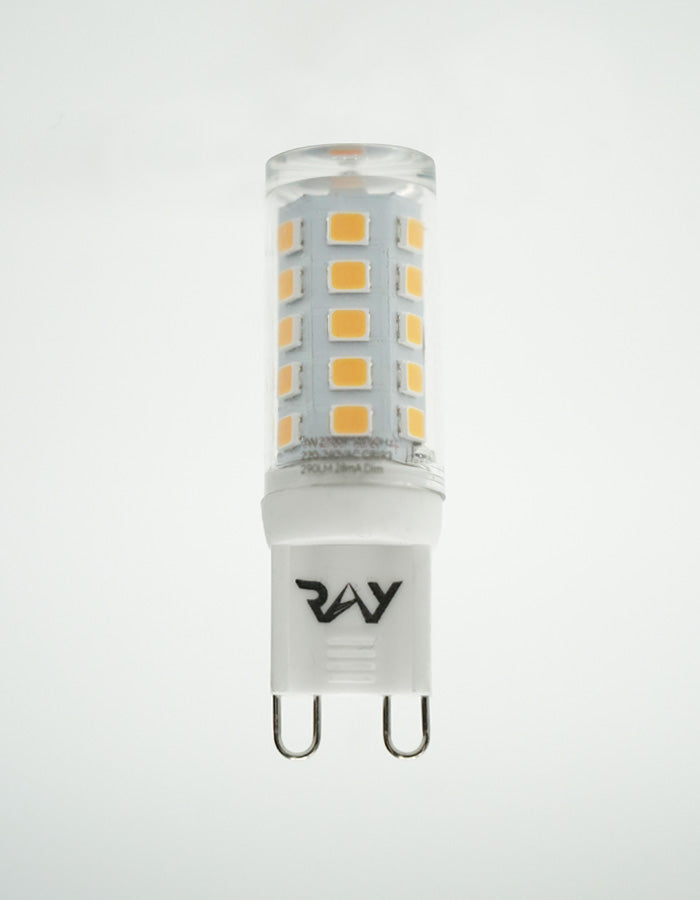

The RAY G9 is a small but mighty hero from the Ray range. Used throughout many different decorative lighting fixtures from table lamps to wall lights. Offering a huge 93 CRI at 2700K whilst having all of the hallmark Ray technology; flicker free, fully dimmable, circadian friendly with no blue spike in the colour spectrum.
Nature's Blue Light
the sleep better bulb
Eye Kind
kind to eyes & mind
Fully Dimmable
get in the perfect mood
Circadian Friendly
natural healthy light
Applications
Residential: All
Architectural: All
Commercial: All
Advantages
• BlueBalance light source
• Circadian friendly, humancentric output
• Flicker Free Bridging Technology*
*Different levels of flicker are present depending on input frequency
Electrical & Photometric Data
Nominal Wattage (W) 3
Nominal Voltage AC 220-240v
Operating Frequency 50/60Hz
Power Factor 0.9
Working Temperature Range -20°C...+40°C
T-Case Maximum 80°C
Starting Time < 0.5 S
SDCM 3 steps
PstLM <0.1
SVM <0.04
Lamp Type G9
Base G9
DimmableYes
mA Rating 28
Optical Data
Lumen (lm) 290
CRI 93
Efficacy (lm/w) 97
Other Data
Lifetime (hours) 20,000 hours
Warranty 3 years
Technical Specifications
CCT 2700K
Beam Angle ° 320°
Product Options
Colour N/A
Baffle N/A
